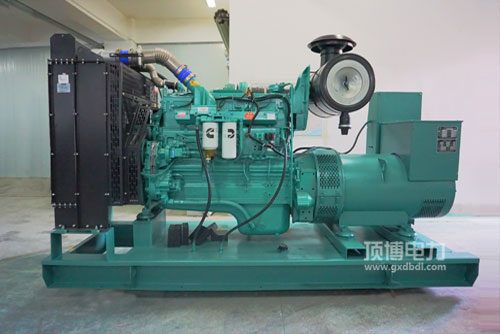

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用发起机汽柴油成本性好: 发达的汽柴油操控程序，独到的STC、ESTC 分级管理操控程序，比较特殊规划的柱塞壳体丙烷汽缸，高压力引射汽柴油，有力吸雾，丙烷复燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打着机瞬态性表现出色: 好看的打着机整体布局设计构思，协调一致康明斯鲜明的EFC整体，管控误差高，没有响应用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用发起机升功效高: 总布局设计的概念紧凑型轿车.外观设计摆设适当合理，运营稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50考虑中国有非公路3、时段.及美洲Tier2. Tier 3减排法律规定特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理必须得要性好， 发起机运作及皮肤保养皮肤保养便捷，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率使用范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯火力发电用启心理的特色：表面积小， 压解比较高， 除雾器环境烧水，更易发动，手机端车载电子外接电源的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发思想款式	所用效率(kW)Prime Power	预备功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
